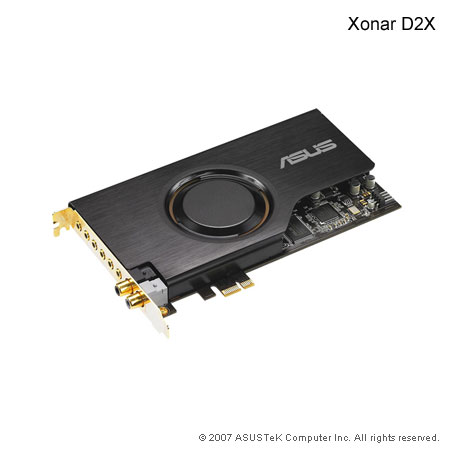

Asus Xonar D2X PCI-E 7.1 Sound Card - $120

[Moonlight-Sonata]

This is the best internal and non-professional multimedia and gaming sound card out there, the quality will blow you away.

NEW condition, only had for about 3 weeks. Original box included, all the accesseries, softwares and drivers included.

现在最好的声卡之一，令人震撼的效果。

所有配件软件等均包括。

Master Piece Audio Card for Home Theater & Gaming in your
PCI Express Slot
Asus Xonar D2X is the world's first PCI-E interface high end audio card featuring SNR up to 118dB. Xonar D2 provides intuitive DS3D GX to solve Vista gaming audio issues, and Acoustic Echo Cancellation (AEC) for best voice communication quality, the Xonar D2X will undoubtedly provide the best gaming experience ever.

ASUS Xonar D2X -Solution to Windows Vista Gaming Audio Problems
With the introduction of Windows Vista, the whole audio architecture landscaped has been changed. This has resulted in teething problems for gamers - with the possibility of losing all surround sound or hardware accelerated Direct3D and EAX while gaming in the Windows Vista environment. To circumvent this problem, the ASUS Xonar family of audio cards utilizes an ASUS exclusive technology - the new DS3D GX extension in the Xonar D2X driver; to provide full support for surround sound and hardware accelerated features by translating DirectX to the DS3D GX. While other solutions like OpenAL requires special installation and game support, DS3D GX doesn't. Gamers can enjoy DirectX gaming with hardware enhanced surround sound and EAX effects automatically and immediately after installation.

Cleanest Voice in Online or LAN Game Chatting
The Xonar D2X also includes the innovative "Acoustics Echo Cancellation" (AEC) technology to facilitate the best online voice communication quality. AEC can eliminate up-to-40dB speaker echo return and suppress noises that would otherwise enter the users' microphone – making the Xonar D2X the best audio card choice for online chatting in VOIP applications (Skype, MSN, Google, QQ, etc.) or online gaming.

Unparalleled Sound Clarity
The ASUS Xonar D2X also features a signal- to-noise ratio (SNR) of 118 dB for both audio in and out - reaching the maximum limit of audio quality on most PC platforms. Unlike generic audio cards in the market that provide the highest SNR to only the front stereo outputs, the Xonar D2X is able to deliver 118 dB quality audio for all 7.1 channels.

Dolby and DTS for Complete Digital Home Experience
Besides delivering impressive audio quality, the Xonar D2X is also packed with multiple sound technologies from Dolby and DTS to deliver outstanding entertainment experiences. These include Dolby Digital Live: Converts PC or game audio content into Dolby Digital in real-time
Dolby Headphone: Creates a surround sound listening experience when using any set of headphones
Dolby Virtual Speaker: Delivers a vibrant surround sound listening experience from stereo speakers
Dolby Pro Logic® IIx: C reates up to 7.1-channel surround sounds from stereo or 5.1 sources
DTS Connect: Includes DTS Interactive and DTS NEOC
DTS Interactive for real time AC-3 encoding and
DTS NEO: PC stereo to multi-channel expander

Audio Performance
Output Signal-to-Noise Ratio (A-Weighted):
Up to 118 dB​

Input Signal-to-Noise Ratio (A-Weighted):
Up to 118 dB​

Output Total Harmonic Distortion + Noise at 1kHz (A-Weighted):
Up to 0.0004% (-108dB)​

Input Total Harmonic Distortion + Noise at 1kHz (A-Weighted) :
Up to 0.0004% (-108dB)​

Frequency Response (-3dB, 24-bit/96kHz input ):
<10Hz to 46kHz​

Output/Input Full-Scale Voltage
2 Vrms (5.65 Vp-p)​

Sample Rate Conversion Quality
Almost lossless, high-fidelity floating-point filters, with:
-140dB THD+N (typical value for 44.1K->48KHz, 24bit)
145dB Dynamic Range (typical value for 44.1K->48KHz, 24bit)
Main Chipset
Audio Processor
ASUS AV200 High-Definition Sound Processor (Max. 192KHz/24bit)​

24-bit D-A Converter of Digital Sources:
TI Burr-Brown PCM1796 *4 (123dB SNR, Max. 192kHz/24bit)​

24-bit A-D Converter for Analog Inputs:
Cirrus-Logic CS5381* 1 (120dB SNR, Max. 192kHz/24bit)
Sample Rate and Resolution
Analog Playback Sample Rate and Resolution
44.1K/48K/96K/192KHz @ 16/24bit​

Analog Recording Sample Rate and Resolution
44.1K/48K/96K/192KHz @ 16/24bit​

S/PDIF Digital Output
44.1K/48K/96K/192KHz @ 16/24bit, Dolby Digital, DTS, WMA-Pro​

S/PDIF Digital Input
44.1K/48K/96K/192KHz @ 16/24bit​

ASIO 2.0 Driver Support:
44.1K/48K/96K/192KHz @ 16/24bit​

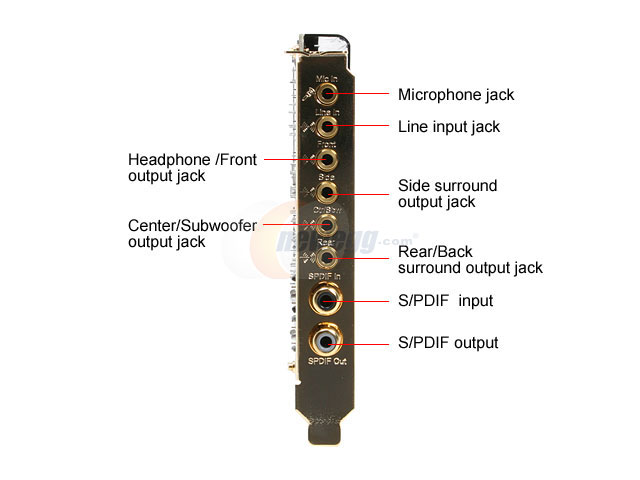

I/O Ports
Analog Output Jack:
3.50mm mini jack *4 (Front/Side/Center-Subwoofer/Back)​

Analog Input Jack:
3.50mm mini jack *2 (Line-In/Mic-In)​

Other line-level analog input (for CD-IN/TV Tuner):
CD-In, Aux-In (4-pin header on the card)​

Digital S/PDIF Output
Coaxial and High-bandwidth Optical Combo Connector Supports 192KHz/24bit​

Digital S/PDIF Input
Coaxial and High-bandwidth Optical Combo Connector Supports 192KHz/24bit​

MIDI Ports
Additional MPU-401 MIDI I/O bracket and converter cable
Driver Features
Operation System
Windows Vista/XP(32/64bit)/MCE2005​

Dolby® Digital Live
Dolby Digital Live encodes any audio signal on PC in real-time to Dolby Digital (AC3) 5.1 surround sounds to your home theater environment through one single S/PDIF connection​

Dolby® Headphone
Dolby Headphone technology allows users to listen to music, watch movies, or play games with the dramatic 5.1-channel surround or realistic 3D spacious effects through any set of stereo headphones.​

Dolby® Virtual Speaker
Dolby Virtual Speaker technology simulates a highly realistic 5.1-speaker surround sound listening environment from as few as two speakers.​

Dolby® Pro-Logic IIx
Dolby Pro-Logic II is the well-known technology to process any native stereo or 5.1-channel audio into a 6.1- or 7.1- channel output, creating a seamless, natural surround soundfield.​

DTS® Connect Technologies
DTS® Connect contains DTS Interactive Encoder and DTS NeoC technologies. DTS Interactive encodes any sound on PC to “DTS 5.1 Surround” high bitrate digital stream to your home theater through S/PDIF connection. DTS NeoC can convert stereo audio into 5.1 or 7.1-channel high-fidelity surround sounds.​

DirectSound3D Game EXtensions 1.0 (DS3D GX)
DS3D GX 1.0 supports EAX gaming sound effects and DirectSound 3D hardware enhanced functions on Windows Vista. (DirectX/DirectSound 3D compatible)​

Acoustic Echo Cancellation (AEC)
Provides advanced Acoustic Echo Cancellation (AEC) for best voice conferencing quality in VOIP applications or online gaming​

Smart Volume NormalizerTM
Normalizes the volume of all audio sources into a constant level and also enhances your 3D sound listening range and advantages in gaming​

Magic VoiceTM
Modifies and disguises the sound tone of your voice for VOIP and online chat applications​

Karaoke Functions
Music Key-Shifting and Microphone Echo effects​

FlexBass™
Professional Bass Management/Enhancement system for small or large speakers​

Xear 3D™ Virtual Speaker Shifter
Virtual 7.1 speaker positioning and shifting to adjust the optimum soundfield for your speaker placement​

Other Effects
10-band Equalier/27 Environment Effects​

3D Gaming Sound Engines/APIs
Vista: DirectSound3D® GX 1.0, EAX®2.0&1.0, DirectSound® HW, DirectSound SW, A3D®1.0, OpenAL generic modes, 128 3D sounds processing capability
XP: EAX®2.0&1.0, DirectSound® HW, DirectSound SW, A3D®1.0, OpenAL generic modes, 128 3D sounds processing capability
Bundled Software Utility
Portable Music Processor utility
Converts digital music content or CD audio into regular MP3/WMA files with Dolby Headphone, Dolby Virtual Speaker (w/ Pro-Logic II), and Smart Volume Normalization processing (Windows Media Player 10 or above is required)​

Professional Audio Creation and Editing Utility
Ableton Live 6 Lite; Cakewalk Production Plus Pack (SONAR LE, Dimension LE, and Project5 LE)​

PowerDVD 7.0
7.1-ch DVD player with Dolby Digital decoder​

MCE Software Kit
Software kit with 10-ft GUI for Windows Media Center Edition​

RightMark Audio Analyzer 6.0.5
Easy but powerful software intended for testing the quality of audio equipments

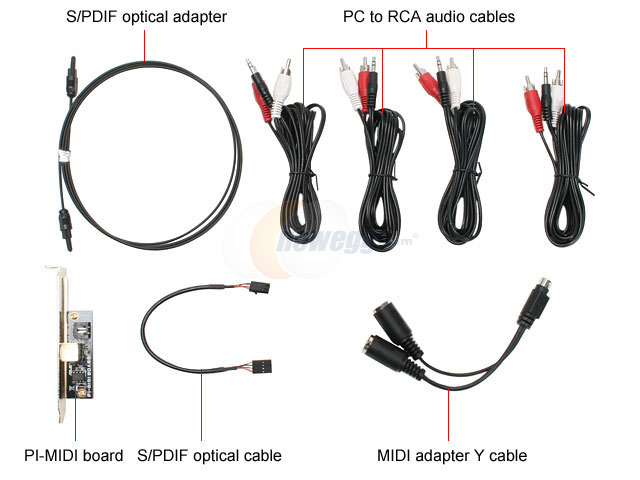

Accessories
Additional MIDI bracket and adaptor cable *1
S/PDIF TOSLINK optical adaptors *2
S/PDIF TOSLINK optical cable *1
Four 3.5mm-to-RCA cables for 8 channel output *4
Dolby Demo CD *1​

有意者联系613-263-8603
