------请问,车轮毂大小-----

16 6.5 ?你原配不是 18x 7.5 吗?

看了一下,rim 上写的是:8665466; 6.5Jx16X52.5; Nor。 BP3KA; K1 4/5; X。RAY; 05HHHH; C253。请问这些是 rim 的什么数据?

rim size 应该是16x7, 5X108 pattern。 另外查到 Hub center Bore 应该是 65.1 和 Stud size 应该是 12x1.5.
还查到 matched rim can be replaced by a 63.4 for 65.1, 可以吗?

tire 205/55/R16

如果要买rim, 请问买什么样的 rim 可用?

谢谢!!!

是Volvo车,对吗?

rim 6.5Jx16x52.5 (5 bolt pattern), Tire 205/55/R16 91V

自己搞不准的话,去Volvo车行问一下。

16 6.5 ?你原配不是 18x 7.5 吗?

呵,你如果不说,我都忘记LZ自己说多大的了。

开帖说是18x7.5,现在又是16X6.5了。

最好去车行买。

是Volvo车,对吗?

rim 6.5Jx16x52.5 (5 bolt pattern), Tire 205/55/R16 91V

自己搞不准的话,去Volvo车行问一下。

谢谢。对不起,有事几天没上cfc。 这是一个Volvo车, 请问3c 兄怎么知道的?rim 上写的是:8665466; 6.5Jx16X52.5; Nor. BP3KA; K1 4/5; X. RAY; 05HHHH; C253 --- 这里有这个信息吗?这些东西究竟是些什么呢?

6.5Jx16x52.5 --- 是Hub center Bore 65.1 和 rim size 6x7 吗? J 是什么? 52.5 又是什么呢?

另外,有人说,215x60x16, 16x6.5 的 rim 可以用于205x55x16, 16x7 的rim 和tire, 可以吗?

谢谢。对不起,有事几天没上cfc。 这是一个Volvo车, 请问3c 兄怎么知道的?rim 上写的是:8665466; 6.5Jx16X52.5; Nor. BP3KA; K1 4/5; X. RAY; 05HHHH; C253 --- 这里有这个信息吗?这些东西究竟是些什么呢?

6.5Jx16x52.5 --- 是Hub center Bore 65.1 和 rim size 6x7 吗? J 是什么? 52.5 又是什么呢?

另外,有人说,215x60x16, 16x6.5 的 rim 可以用于205x55x16, 16x7 的rim 和tire, 可以吗?

I think that the rim size is 16x6.5. I'd use whatever is originally designed for.

You should try to understand the tire codes/markings and what they mean, for example 215/205 is the width of tires, etc.


附件

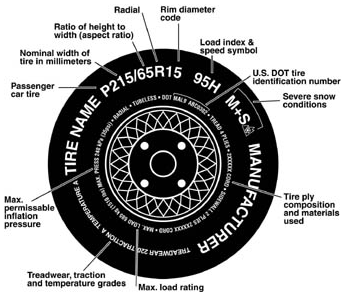

  • Tirecode.gif
    50.4 KB · 查看: 72
I think that the rim size is 16x6.5. I'd use whatever is originally designed for.

You should try to understand the tire codes/markings and what they mean, for example 215/205 is the width of tires, etc.

Thanks.

I know this difference, so I wonder that "有人说,215x60x16, 16x6.5 的 rim 可以用于205x55x16, 16x7 的rim 和tire, 可以吗"?

And, your picture is about tire, do you have a picture about rim as well --- I could not find it and it could be very useful?

....


附件

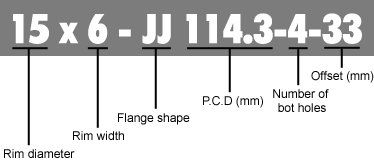

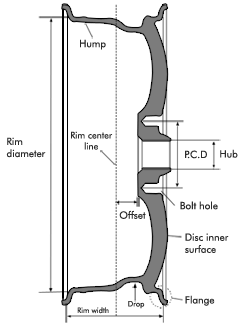

  • rim_markings.gif
    10.7 KB · 查看: 63
  • rim_markings_numbers.gif
    5.2 KB · 查看: 65

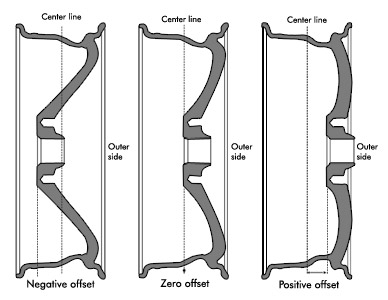

  • wheels_type.jpg
    24.5 KB · 查看: 68

Thanks a lot!

Still has a question: That Volvo car rim data are not as same as the standard as it on your rim picture. (Only 6.5Jx16X52.5 could be.)

So, how about other data? (665466; 6.5Jx16X52.5; Nor. BP3KA; K1 4/5; X. RAY; 05HHHH; C253)
