Input Power:110V-240V AVAILABLE
Output Power:50W Per channel (8Ω )

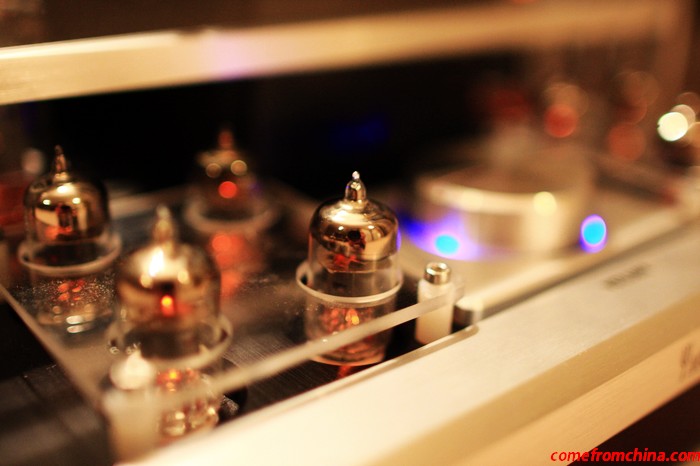

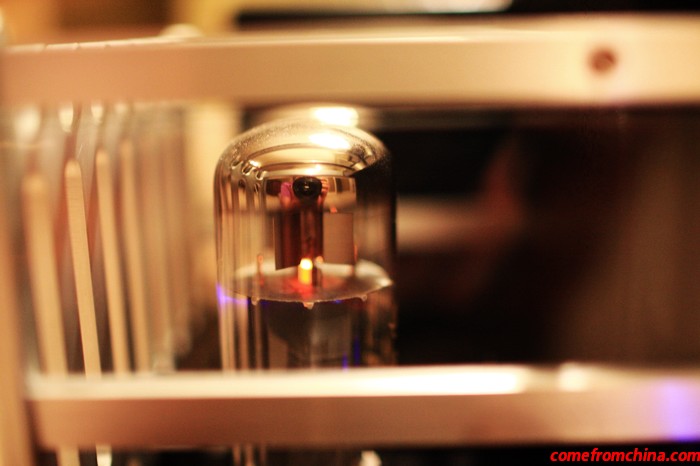

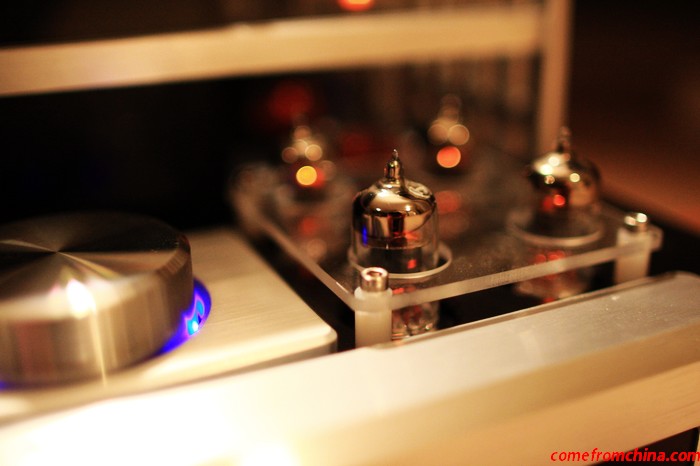

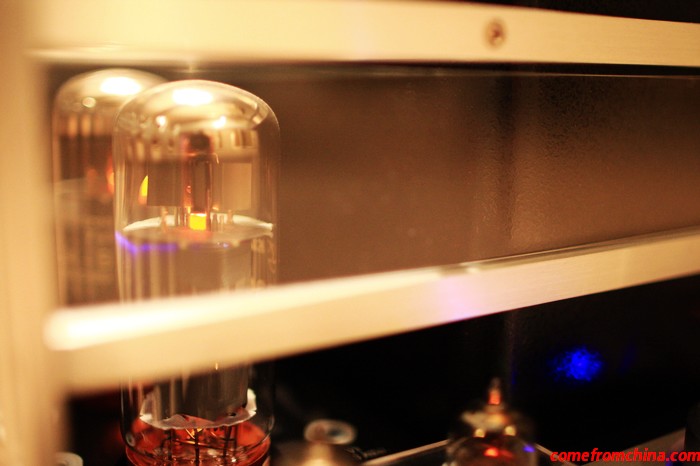

Valve / Tubes: EL34B × 4, 6J1 × 8
Frequency : 5~75KHzSNR:>88dB (A weight)
Load impedance:4 - 8 ohmsSignal Inputs Level :0.23V(1KHz)
Power Consumption : 180W

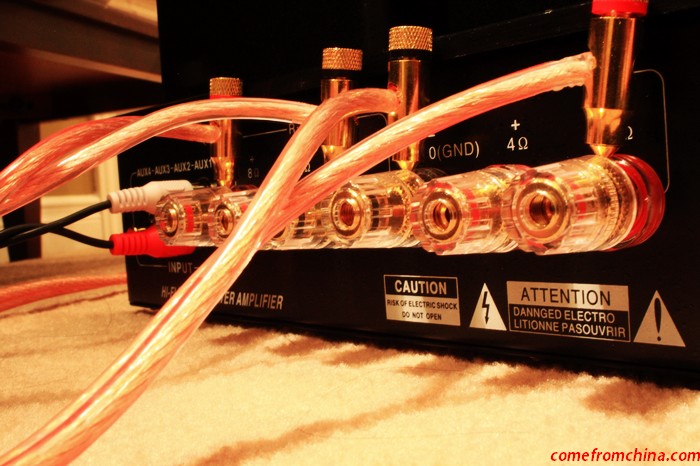

Input Jack : Four groups of gold plated Isolated RCA jacks (AUX1 – AUX4)
Colour:Black
Weight: 24 kgH
armonic Distortion:≤1.6% (at 1KHz)Earphone
Output: 32ΩPacking
Include: All Tubes, 1.5m Power Cord, Remote Control & Hex Key

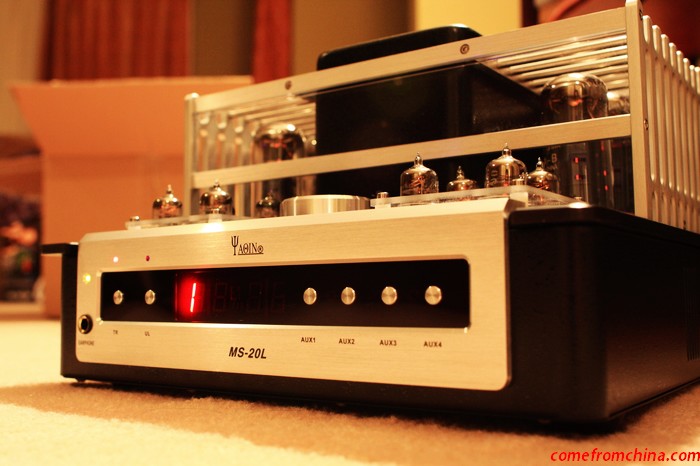

The latest version of EL34 output amplifier from Yaqin;

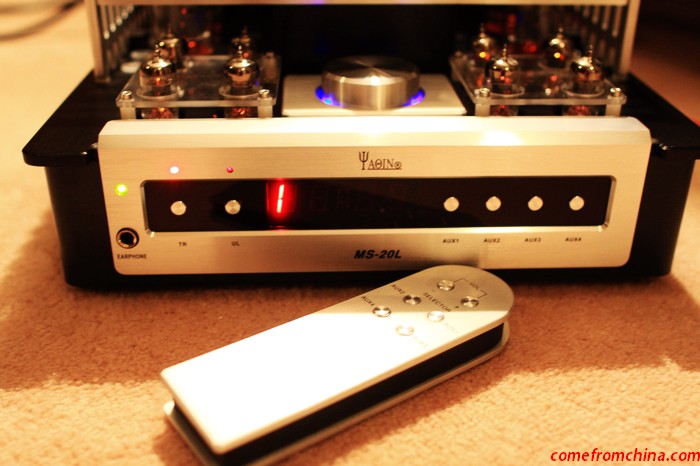

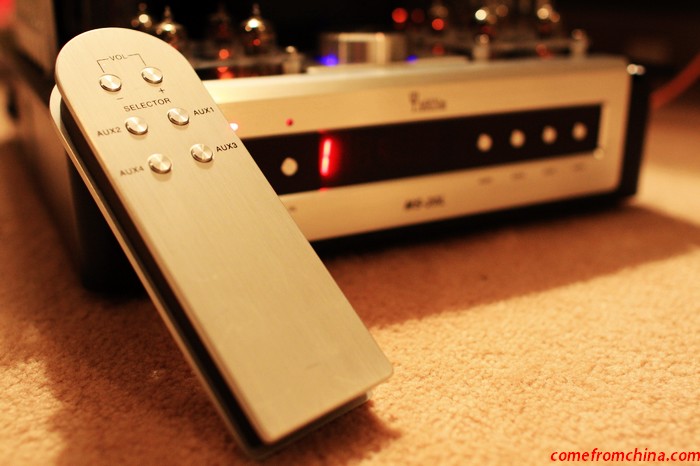

Infrared remote control for volume adjustment and input selections;

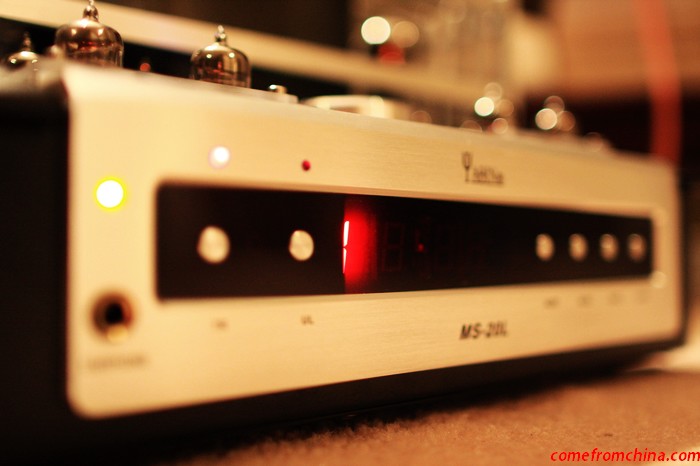

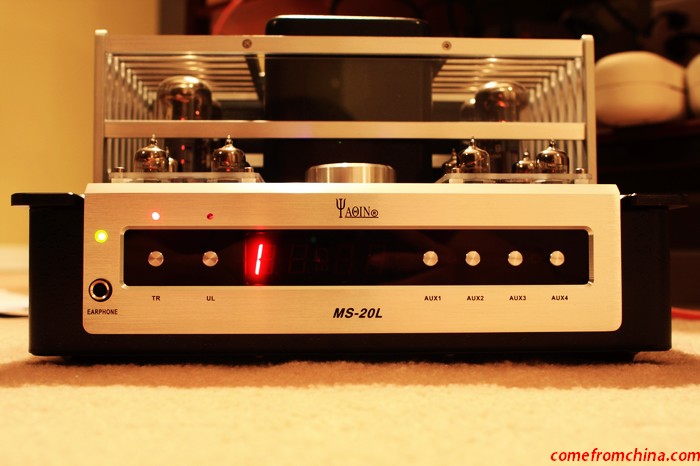

TR/UL (Triode and Ultra Linear modes) switches on the front panel;
Earphone jack on the front panel;
External bias adjustment;
High DC voltage delay circuit to protect tubes;
Class A push-pull power amplifier to reduce distortion;
Output transformers manufactured with Japanese silicon steel sheet and high-quality enamelled wire, which offer a wide dynamic range at full rated output;
Utilizes the audiophile capacitors and high quality metal precision resistors dedicated for audio frequency;

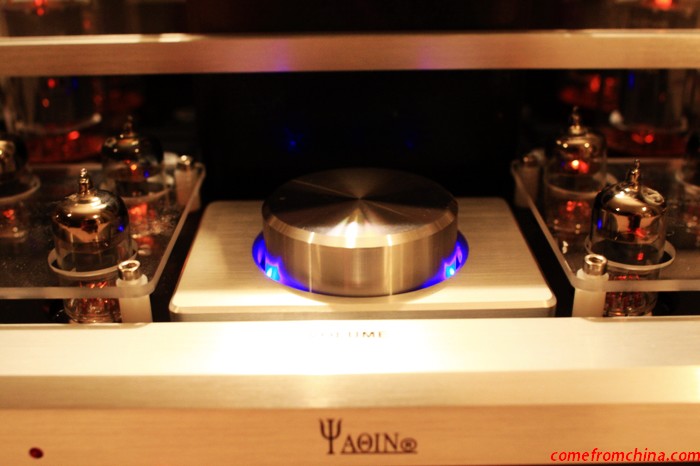

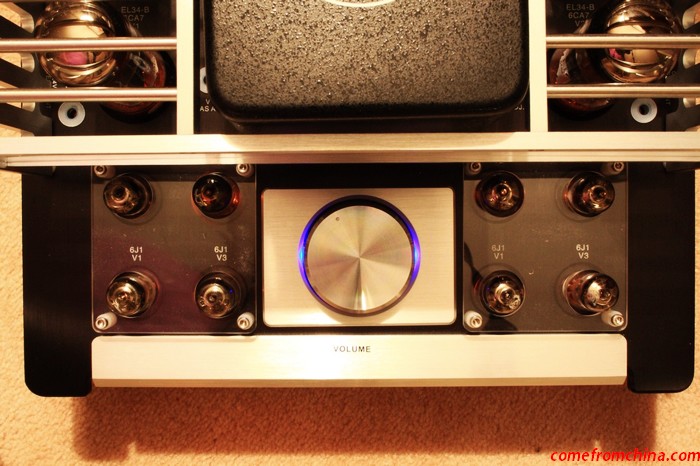

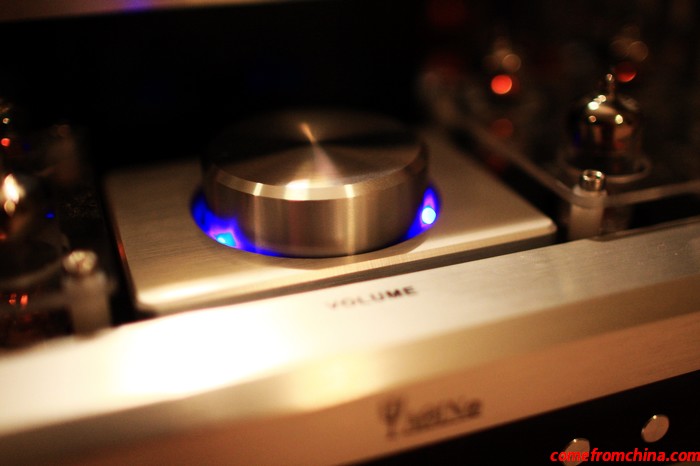

Applies special potentiometer as volume controller with low noise, and durable;

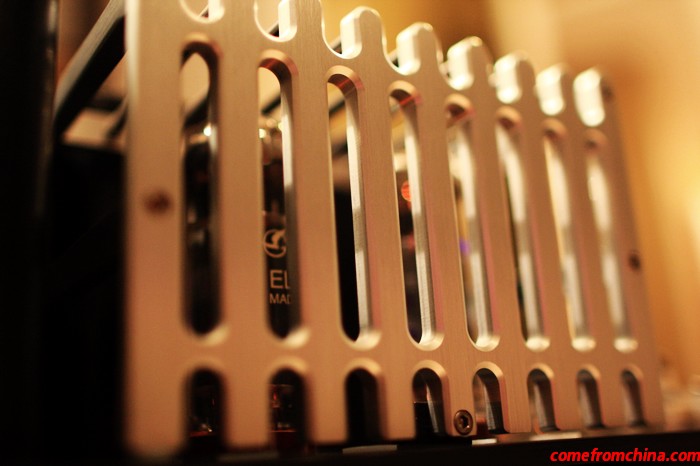

Beautiful heavy duty chassis. Aluminum chassis top, front panel, and bezels, stainless steel chassis, and steel bottom;
