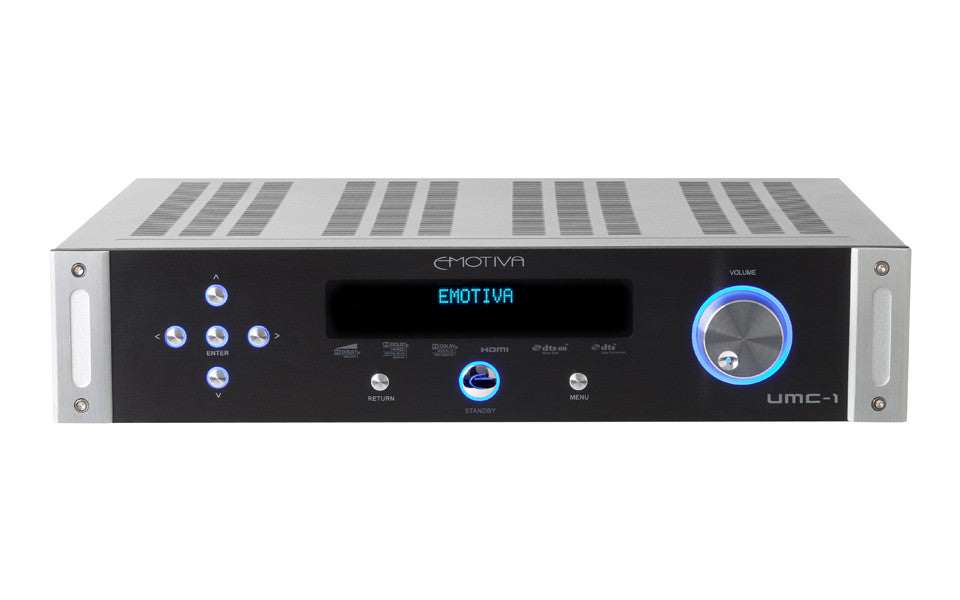

Brand New, Never used UMC-1.
613-225-4526
Price is local pick up only, For other city buyer pay shipping.

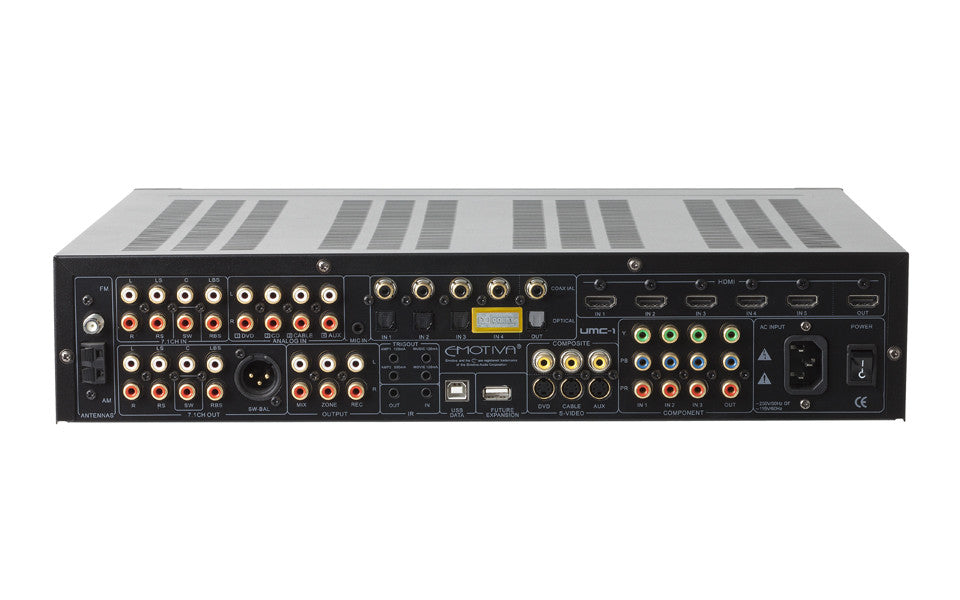

Connectivity
613-225-4526
Price is local pick up only, For other city buyer pay shipping.
Connectivity
- 5 HDMI inputs and 1 HDMI output
- 3 composite video inputs (RCA)
- 3 S-video inputs (S-video mini DIN)
- 3 component video inputs (RCA)
- 1 component video output (RCA)
- 4 stereo analog audio inputs (RCA)
- 1 7.1 analog input set (RCA)
- 4 coaxial digital inputs (RCA)
- 3 optical digital inputs (Toslink)
- 1 coax digital audio output (RCA)
- 1 optical digital audio output (Toslink)
- 1 stereo or 2 channel analog multi channel mix down output for fixed level monitoring (RCA)
- 1 stereo analog variable and independent Zone 2 output (RCA)
- 1 stereo analog fixed level record output (RCA)
- AM/FM tuner with 24 FM and 6 AM presets
- 3 assignable trigger outputs: Movie/Music/Amp (3.5mm mini)
- 1 IR input (3.5mm mini)
- 1 IR output (3.5mm mini)
- 1 microphone input (3.5mm stereo mini)
- 1 USB data input (for software upgrades only)
- Size:
Unboxed: 17" wide x 3 7/8" high x 13" deep
Boxed: 18" wide x 7" high x 23" deep
- Twin Cirrus® 32 bit dual core DSPs.
- Decoding support for Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Digital True HD, Dolby PLIIx, DTS, DTSES, DTS HD, DTS Master Audio, DTS Neo 6, SPDIF, PCM 8 channel (note: some audio formats are only supported via HDMI).
- Multi-channel Dolby Volume.
- Genesis/ST® Torino high performance scaling engine - featuring a full implementation of the Faroudja DCDi™ image processing suite.
- Intuitive, full color graphical OSD with adjustable transparency presented over live video, including HDMI.
- Emo-Q™ automatic multi-channel room correction and loudspeaker setup. Calibrated measurement microphone included.
- Quadruple bass manager with independently selectable high and low pass frequencies from 40hz – 250hz, in 5 or 10Hz increments (depending on frequency).
- Selectable 12 dB or 24 dB per octave high pass and low pass filters by channel groupings.
- Independent 11-band graphic EQ with global bass and treble controls by channel groupings.
- Balanced subwoofer output.
- All legacy video inputs can be scaled and output over HDMI at up to 1080p.
- 1080p/24 fps video support.
- Video pass-through mode with 12 bit compatibility.
- HDMI sources can be format converted to component video up to 1080i (subject to Macrovision™ guidelines).
- HDMI 1.3a Deep Color compliant.
- All inputs are assignable and feature input labeling, selectable decode modes, selectable triggers, etc.
- 0.5 dB level trims on all channels.
- High voltage, low impedance main analog outputs for uncompromised dynamic headroom.
