ThinkPad 迷你笔记本扩展基座 3实现了ThinkPad 用户日常所用设备的一步式连接。适用于需要连接网线、显示器及多个USB 外围设备，音频，视频，电脑钥匙锁的笔记本电脑用户。
ThinkPad 迷你笔记本扩展基座 3给您带来很多方便，带走笔记本时，不需要拆除所有的接口连线，笔记本放回来时省去了重新连接所有接口线的麻烦。
适用机型：L412, L512, L420, L520, T400s, T410, T410i, T410s, T410si, T420, T420s, T510, T510i, T520 Dual Core models, X220
保修期截至日期：2012-6-27
序列号为：M2LM54T，你可以在联想网站查到保修期信息.
http://support.lenovo.com/en_US/prod.../default.page?
本人要价 $169 or best offer

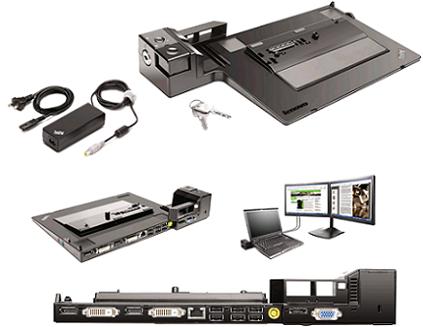

Brand New - The ThinkPad Mini Dock Series 3

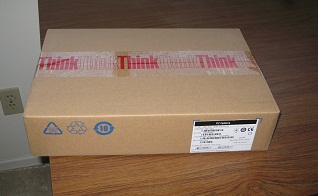

(Sealed in the box, not opened)
The ThinkPad Mini Dock Series 3 (433710U - 90W AC Adapter: U.S., Canada) is ideal for notebook users who have advanced computing requirements but demand a docking solution that is small and easy to use.
The ThinkPad Mini Dock Series 3 can be used for Lenove laptops:
L412, L512, L420, L520, T400s, T410, T410i, T410s, T410si, T420, T420s, T510, T510i, T520 Dual Core models, X220
warranty till 2012-6-27 SN:M2LM54N，you can check warranty status in lenove web site.
http://support.lenovo.com/en_US/prod.../default.page?
Asking $179 or best offer
In newegg, the price is $179.99 + 23.39( tax)+ 8.19(shiping) = $211.59
http://www.newegg.ca/Product/Product...+dock+series+3
in amazon, the same mode priced at $201.84 + 26( tax) + 7.99(shiping) = $235.98
http://www.amazon.ca/gp/offer-listin...&condition=new
Features and benefits:
The ThinkPad Mini Dock Series 3 - 90W (433710U) is ideal for notebook users who need easy access to the Internet/LAN, multiple USB devices, audio and video equipment, and robust key lock security.
Features and benefits:
Left corner alignment for easy system attachment
Convenient eject button for one-step system removal
Six USB 2.0 ports
Three video ports:
Any two, of the three, video ports can be used simultaneously:
ThinkPad systems with NVIDIA Optimus technology: ThinkPad display is enabled. For more information: NVIDIA Optimus - ThinkPad Multiple Monitor Configurations
ThinkPad systems with integrated graphics, or other discrete graphics: Disables the ThinkPad display. The ThinkPad display is blank.
VGA analog monitor supporting 1920 x 1200 resolution
One Single-Link DVI-D digital monitor supporting 1920 x 1200 resolution
Single-Link DVI-D port does not support attachment of a DVI-to-VGA monitor adapter.
One DisplayPort monitor supporting 2560 x 1600 resoltion
Supports attachment (compatibility varies by ThinkPad system) of DisplayPort monitor cables; Using DisplayPort monitor cables reduces resolution to 1920 x 1200
Audio ports*: Analog microphone in, headphone out
RJ-45 Ethernet port
Integrated key lock and cable lock slot physically secures the ThinkPad and ThinkPad Mini Dock Series 3
The cable lock and key lock operate seperately
The cable lock secures the ThinkPad Mini Dock Series 3 to the workspace (desk, table, pole, furniture, wall)
The cable lock slot supports attachment of Kensington Cable Locks from Lenovo.
The separate key lock, on the side of the ThinkPad Mini Dock Series 3, secures the ThinkPad to the ThinkPad Mini Dock Series 3
To remove the ThinkPad, from the ThinkPad Mini Dock Series 3, the user turns the seperate key. The user does not need to remove the cable lock from the ThinkPad Mini Dock Series 3
Includes two security keys
Compatible to Lenovo Easy Reach Monitor Stand
Includes a ThinkPad 90W AC Power Adapter
ThinkPad 90-watt AC Power Adapter varies by country. Service parts has a listing of the country part numbers for the ThinkPad Mini Dock Series 3.
One-year warranty
Notes:
ThinkPad L412, L512: ThinkPad Mini Dock Series 3 dock audio ports are inactive, ThinkPad audio ports are active.
DisplayPort Monitor Cable compatibility varies by ThinkPad system
Physical specifications:
ThinkPad Mini Dock Series 3 (4337)
Approximate height: 55 mm (2.2 in)
Approximate width: 345 mm (14.0 in)
Approximate depth: 198 mm (7.8 in)
Approximate weight: 0.9 kg (2.0 lb) - Does not include the 90W AC power adapter
ThinkPad Mini Dock Series 3 (4337) packaged in a carton:
Approximate height: 85 mm (3.3 in)
Approximate width: 380 mm (15.0 in)
Approximate depth: 250 mm (9.8 in)
Approximate weight: 1.8 kg (3.9 lb) - Includes the 90W AC power adapter
Operating environment:
Temperature: 0 degrees C (32 degrees F) to + 40 degrees C (104 degrees F)
Relative humidity: 5% to 90% (non-condensing)
Storage environment:
Temperature: - 20 degrees C (- 4 degrees F) to + 60 degrees C (140 degrees F)
Relative humidity: 5% to 95% (excluding rain)
